Apollo™ & JaHam® Grain Truck Probes
Reliable grain truck probe systems for elevators,
feed mills, ethanol plants, processing facilities, terminals
and other grain-handling operations.
Gamet Manufacturing offers Apollo and JaHam grain truck probes
designed to help facilities obtain representative samples from
incoming truckloads before unloading.
From seasonal receiving locations to high-volume grain operations,
Gamet can help configure a truck probe sampling system around your
traffic volume, facility layout, sampling needs and sample
conveying distance.
Representative Grain Sampling Starts at the Truck
A grain truck probe allows operators to collect grain from
multiple locations within a truck or trailer before the load
is unloaded. When used as part of a proper sampling procedure,
this helps facilities obtain a more representative sample for
testing, grading and quality-control decisions.
Moisture, test weight, foreign material and other quality
measurements are only as useful as the sample being evaluated.
A properly configured truck probe system helps provide the
information needed to make informed receiving and commodity
decisions.
Gamet combines hydraulic truck probe equipment with pneumatic
sample conveying and a broad selection of system accessories
so the probe can become part of an efficient receiving
operation rather than function as a stand-alone machine.
Built for the Sampling Process
- Core-style grain probe systems
- Hydraulic operation
- Multiple vacuum system options
- Low- through high-volume models
- Pneumatic sample conveying options
- Grain return and receiving accessories
- Technical and installation resources
- Made in the USA
Compare Gamet Grain Truck Probe Models
Apollo and JaHam truck probes provide several equipment sizes so
facilities can select a system based on truck volume, operating
requirements, reach and facility configuration.
| Truck Probe | Typical Application | Hydraulic Pump | Maximum Rotation | Operator Control |
|---|---|---|---|---|
JaHam JT03 |
Lower-volume and seasonal facilities | 1 HP | 240° | Handheld joystick |
JaHam JT10 |
Low- to mid-volume facilities | 2 HP | 240° | Handheld joystick |
JaHam JT20 |
Processing plants and high-volume grain elevators | 2 HP | 240° | Handheld joystick |
Apollo 610A |
Low- to mid-volume whole-grain applications | 2 HP | 240° | Dual joystick |
Apollo 17 |
High-volume grain handlers and processing facilities | 5 HP | 270° | Dual joystick |
Not sure which grain truck probe fits your operation?
Truck volume is only one consideration. Probe reach, traffic lanes,
scale-house location, sample conveying distance, commodities and
installation space can all affect equipment selection.
Apollo™ Grain Truck Probes
Apollo truck probes are rugged hydraulic sampling systems
designed for facilities that require dependable operation
and straightforward controls.
Both Apollo models use core-style probes and are available
with multiple vacuum system options. The primary difference
is the size and operating capacity required for the
application.
Apollo 610A
The Apollo 610A
is the smaller Apollo model and is designed for whole-grain,
low- to mid-volume applications. It uses a 2 HP hydraulic
pump drive system, dual joystick operator controls and
provides up to 240° of rotation.
Apollo 17
The Apollo 17
is designed for high-volume grain handlers. Its 5 HP
hydraulic pump drive system, dual joystick controls and
maximum 270° rotation make it a strong option for processing
plants, terminals and demanding receiving environments.
JaHam® Grain Truck Probes
The JaHam truck probe line provides three equipment sizes
for facilities ranging from seasonal receiving locations
to high-volume grain elevators and processing plants.
JaHam systems feature hydraulic operation, core-style
probes, multiple vacuum options and handheld joystick
operator controls.
JaHam JT03
The JT03
is the most economical JaHam truck probe and is especially
suited to lower-volume and seasonal facilities.
JaHam JT10
The JT10
is designed for low- to mid-volume facilities and provides
a longer reach and longer core probe than the JT03.
JaHam JT20
The JT20
is the largest JaHam model and is intended for processing
plants and high-volume grain elevator applications where
daily dependability is essential.
Truck Probe Systems Designed Around Your Facility
A grain truck probe does not operate in isolation. The location
of the probe, truck lanes, scale house, sample collection point,
pneumatic conveying system and operator controls all affect how
the complete sampling system should be configured.

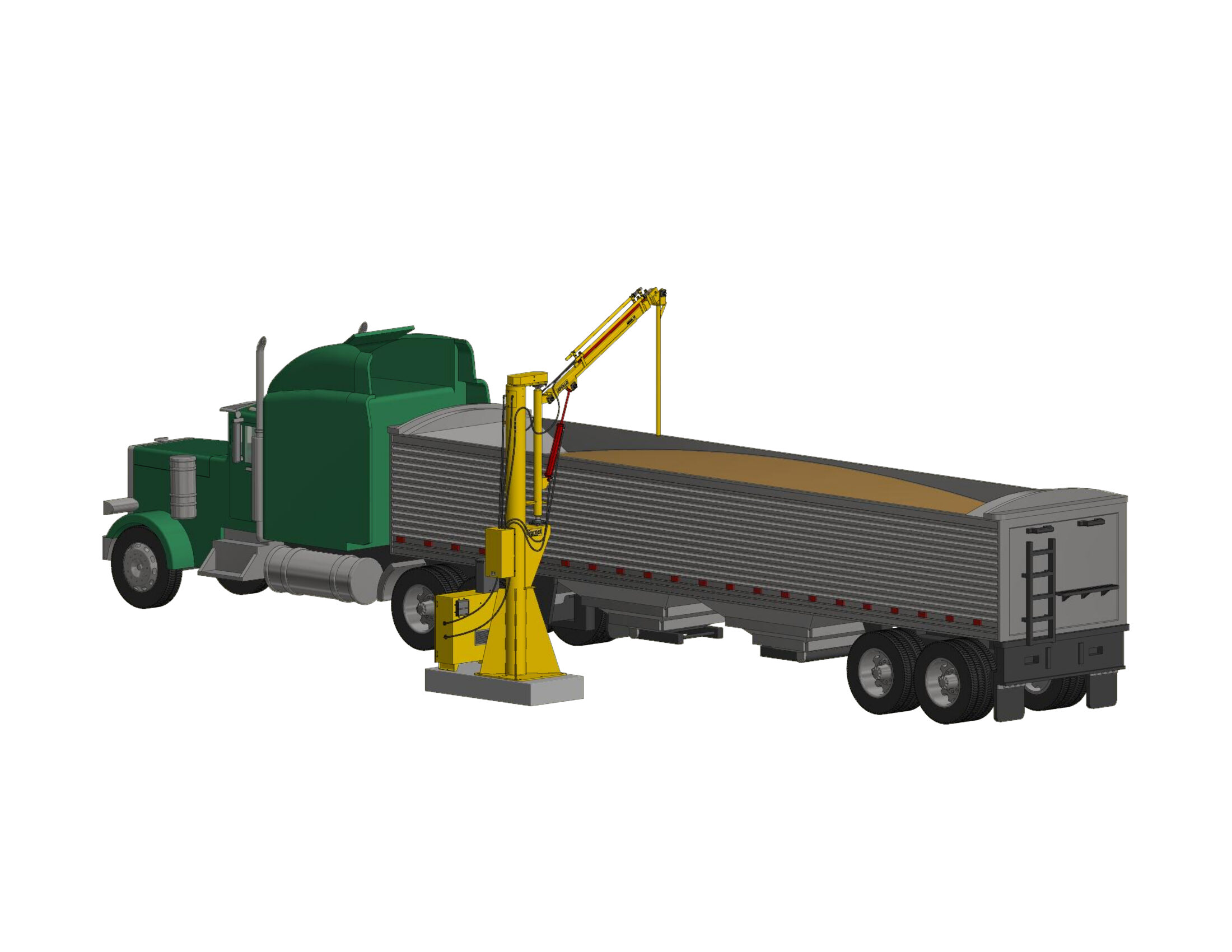

Apollo grain truck probe application

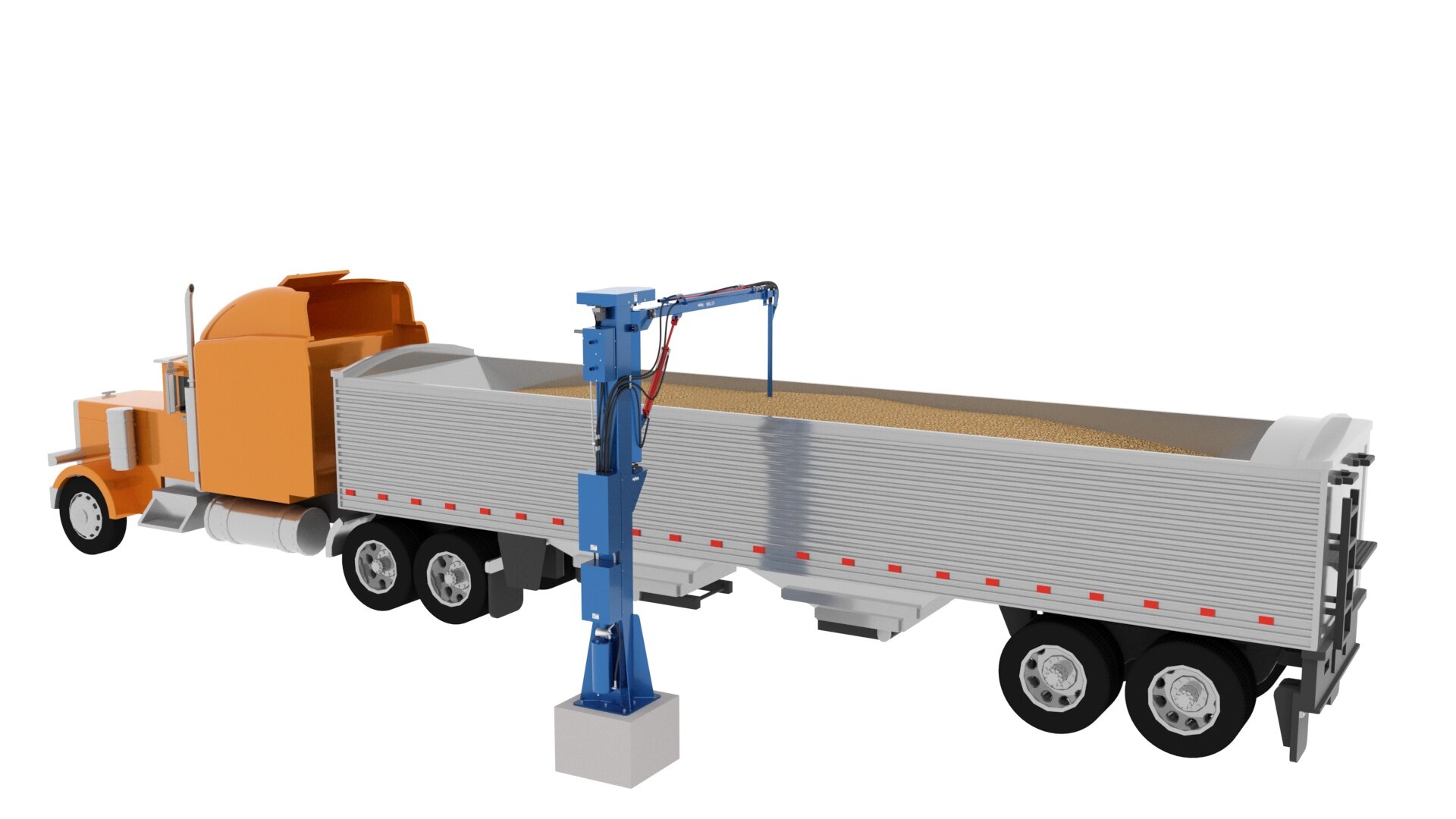

JaHam grain truck probe application
Factors to Consider When Selecting a Grain Truck Probe
Build a Complete Truck Probe Sampling System
Gamet offers accessories that allow the truck probe,
sample transportation, operator communication and truck
traffic flow to work together as a complete system.
- Long-distance pneumatic sample conveying
- Grain return systems
- Traffic control signal lights
- Intercom and communication systems
- CCTV and monitoring equipment
- Ticket conveying systems
- Tubing support and bridge structures
- Spare parts and emergency kits
Maintenance & Technical Support
Reliable equipment is especially important when truck
traffic increases. Preventive inspection, proper
adjustments and access to critical replacement parts can
help reduce avoidable downtime.
Gamet maintains technical resources for Apollo and JaHam
systems including hydraulic adjustments, probe air-flow
adjustments, installation instructions and hydraulic
valve testing.
Why Gamet for Grain Truck Sampling?
Gamet Manufacturing’s focus extends beyond the truck probe
itself. Our experience includes truck probes, automatic
sampling equipment, sample dividers, pneumatic sample
transportation and the accessories needed to create complete
grain sampling systems.
That broader sampling expertise allows our team to look at
the complete process—from obtaining the sample at the truck
to moving and handling that sample for testing.
Grain Truck Probe Frequently Asked Questions
What is a grain truck probe?
A grain truck probe is a sampling system used to collect grain
from multiple locations within a truck or trailer before
unloading. The collected grain can then be transported to a
testing or sample collection area.
Why use a truck probe for grain sampling?
A truck probe allows operators to obtain samples from different
locations within the load while the truck is positioned in the
receiving area. When properly used, this supports a more
representative sampling process before unloading.
What is a pneumatic grain truck probe system?
A pneumatic truck probe system uses moving air to transport
collected grain through tubing from the probe to a sample
collection location such as a scale house, office or testing
area.
Which Gamet truck probe should I choose?
The correct model depends on factors including truck volume,
facility layout, required probe reach, traffic configuration
and sample conveying distance. Gamet offers the JaHam JT03,
JT10 and JT20 along with the Apollo 610A and Apollo 17 to cover
a range of operating requirements.
What is the difference between Apollo and JaHam truck probes?
Both product families use hydraulic operation, core-style
probes and multiple vacuum system options. The lines differ
in model sizes, controls, rotation and configuration options,
allowing facilities to select equipment that better matches
their operating requirements.
Can the sample be conveyed to a remote scale house?
Yes. Gamet offers several pneumatic sample conveying
configurations. The appropriate vacuum and conveying system
depends on the distance between the truck probe and the sample
collection point as well as the facility layout.
What accessories can be added to a truck probe system?
Available accessories include grain return systems, traffic
lights, CCTV equipment, communication systems, ticket conveying,
pneumatic sample transportation, support structures and spare
parts.
Does Gamet provide support for existing truck probes?
Gamet provides replacement parts, emergency kits, installation
resources and instructional information for Apollo and JaHam
truck probe systems.
Find the Right Grain Truck Probe for Your Operation
Whether you operate a seasonal grain elevator, feed mill,
processing facility, ethanol plant or high-volume grain terminal,
Gamet can help configure a truck probe sampling system around
your receiving operation.
Better samples. Better decisions.
